Electric Actuated CL150 Butt welded WCB Triple Offset Butterfly Valves
  • Butt weld butterfly valve
  • butterfly valve butt welded type
  • butt weld butterfly valve manufactory
  • butt weld industrial butterfly valve

Electric Actuated CL150 Butt welded WCB Triple Offset Butterfly Valves

  • Product description:

    Buttwelding Triple Offset Butterfly Valves Material: Body: WCB; Disc: CF8, Stem: F6A. Seat: WCB+STL,Sealing ring: CF8+STL Nominal Pressure PN16 Nominal Diameter: DN700 End Connection:

Similar items

read more

  • Details
  • Description
  • Download

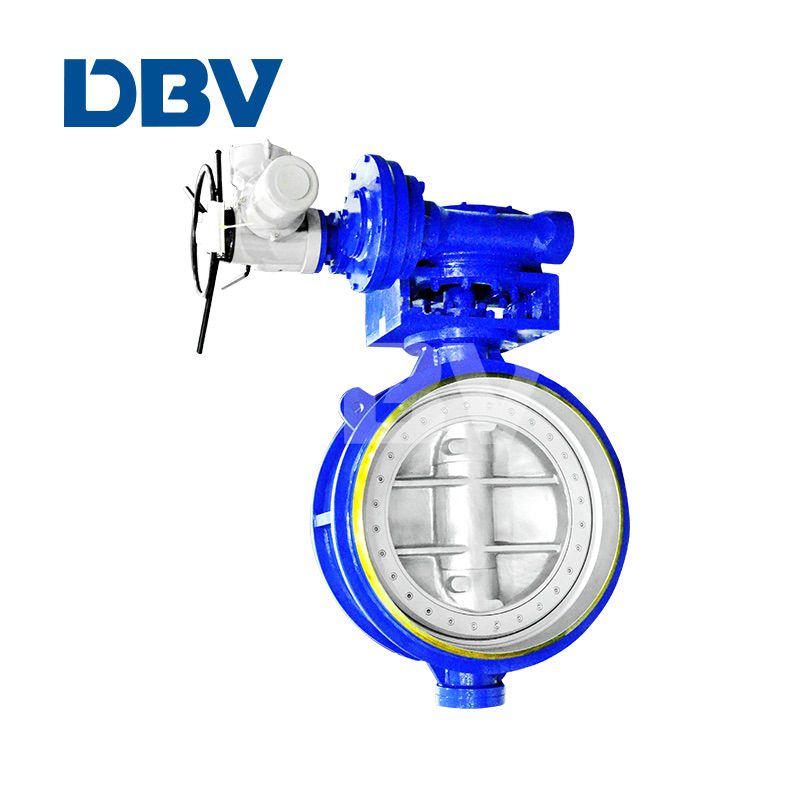

Electric Actuated CL150 Butt Welding WCB Triple Offset Butterfly Valves

Valve manufacturer description

Butterfly Valve


Electric Actuated CL150 Butt Welding WCB DN500 Triple Eccentric Butterfly Valve


Body: WCB; Disc: CF8, Stem: 13Cr. Seat: WCB+STL Seal Ring:CF8+STL

Nominal Pressure:


Nominal Diameter:


End Connection:

Butt Welding


Triple Eccentricity



Valve type:

Industrial Valve

Working Temp.:


Test / Inspection:

API 598

Face To Face:

API 609

PSWe also can do according to customer's requirements.

details-dbv valve manufacturer


Unique Plum Pin Design

Adopts  the  plum pin design,  which DBV butterfly valve

is  different  from  traditional  pin  design.  As we all know,

traditional  pin is straight to the stem,  but  the plum pin is

tilted to the stem. From the aspect of application, the plum

pin could afford higher pressure and larger diameter.

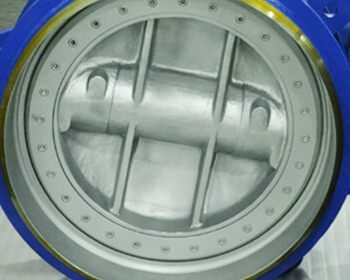

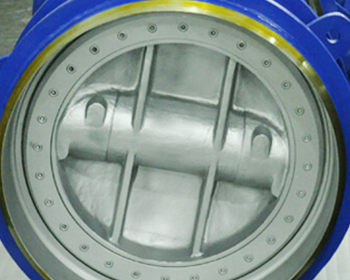

Oval Turtle Disc Design

DBV butterfly valve adopts the unique oval turtle

advantages  such  as   high   strength,   good  flow

truss  structure  design  of  the  disc.  It  has several

characteristics and low flow-resistance coefficient.

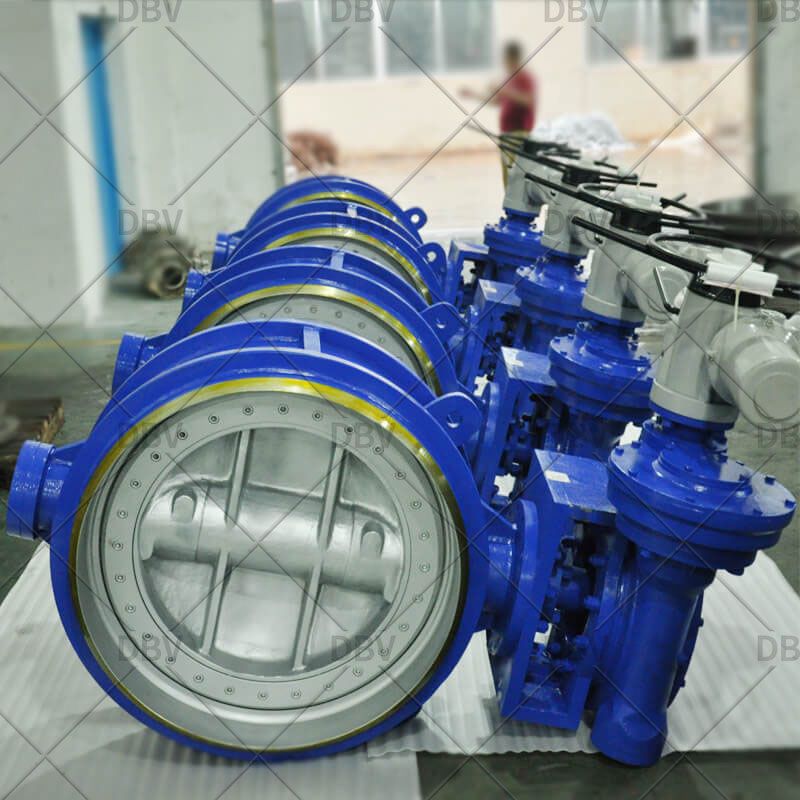

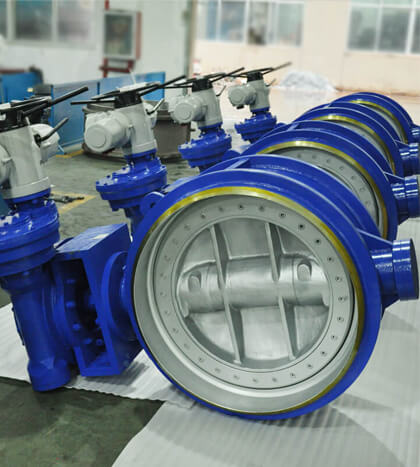

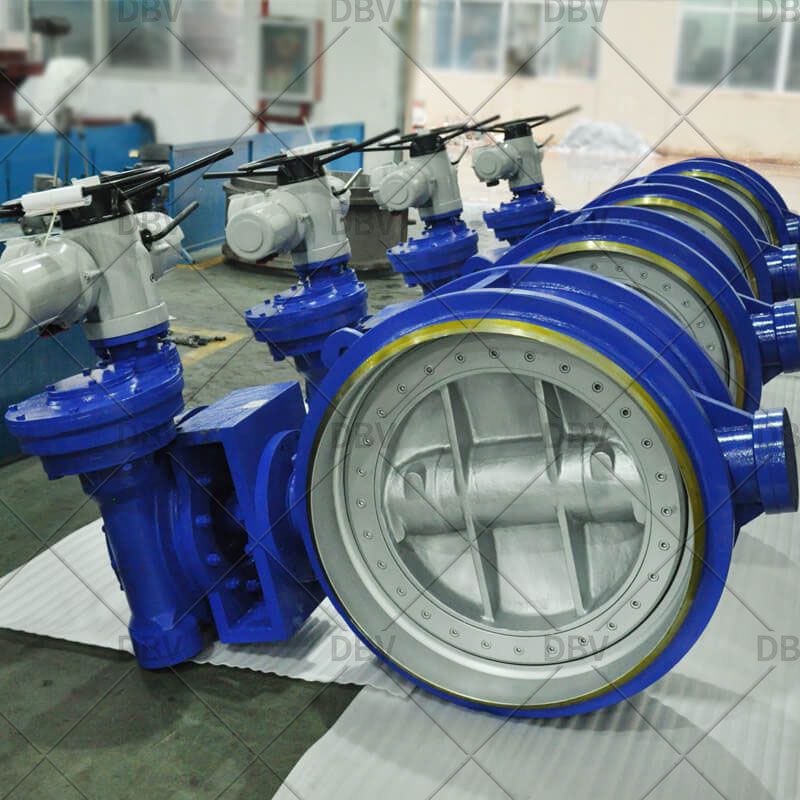

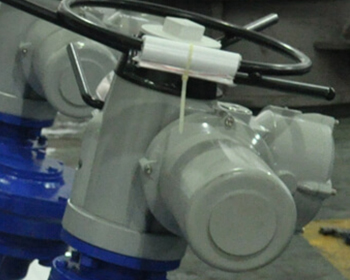

Electric Device

DBV butterfly valve selects the actuators made by the best suppliers.

Many kinds of electric device can be provided. We could also select the

actuator according to the customer's requirement.



Internal Snap Ring and Bottom Cover Design

DBV butterfly valve adopts the unique stem design.

The  bottom  of the  stem is slotted. The ring  is  embed

-ded to prevent the stem blow out. Then, the snap

bottom  cover  plays  a  same role. This design  suits

 for the valve which is larger than four inches.

Why-dbv valve manufacturer

  Triple Eccentricity Design Features

 TripleEccentricityThe stem is offset on both the X (1)and Y (2) axis of the valve's

center line. This produces a cam一like motion. The third offset (3)

consists of an inclined conical  profile machined into  the  valve

sealing  surface. This allows rotary engagement and disengagement

of   the   seat   and   seal   ring without interference.  All  rubbing

between  seat  and seal ring is thereby eliminated. Once the seat

and seal ring are  fully  engaged  torque  is applied in order to

create a bi一directional, zero leakage,  metal-to一metal seal. For

this reason, triple offset valves are often defined as "torque" seated

rather than”position” seated as in the case of resilient or high performance products.

  Multi-layer disc sealing ring


Multi-layer disc sealing ring adopts ss304 and graphite laminated, sealing

by the inside graphite, applied for low and middle pressure, as recycle water,

swage treatment, city building, etc.

  Product Comparison

  Pin Design


  Bottom Cover Design


  Bolt & Nut

DBV Butterfly Valve Bolts Design



  Factory Direct Sales

DBV Butterfly Valve

Quality, transportation, after-sales

FQ-dbv valve manufacturer

  Q1. Are you a factory or trading company?

  A: We are a factory specialized in manufacturing valves 20 years. We both have factory in Wenzhou and Shanghai.

  Q2. Can I have a sample order for valve?

  A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.

  Q3.Do you have any MOQ limit for valve order?

  A: Low MOQ, 1pc for sample checking is available

  Q4. How do you ship the goods?

  A: We usually ship by sea, by air, by courier, etc.

  Q5. How to check the process of the order?

  A: You can check your order on our website after we provide you account and password.

  Q6: Do you offer guarantee for the products?

  A: Yes, we offer 2 years warranty to our products and we could repair freely for lifelong time.

  Q7: Can you put our Logo on the valves?

  A:Yes, we can totally produce products according to your special request, even manufacture them base on your drawing.

  Q8: How can I check your factory situation while it's difficult for me to come to China?

  AWe have photos and videos on our website, youtube and facebook, It shows every step of our manufacturing.
