Carbon Steel WCB PN16 Butterfly Valve
  • High quality flange butterfly valve
  • flange butterfly valve
  • Whole sale butterfly valve factory
  • Whole sale flanged butterfly valve manufacturer
  • Flanged GOST bal valve manufacturer
向上
向下

Carbon Steel WCB PN16 Butterfly Valve

  • Product description:

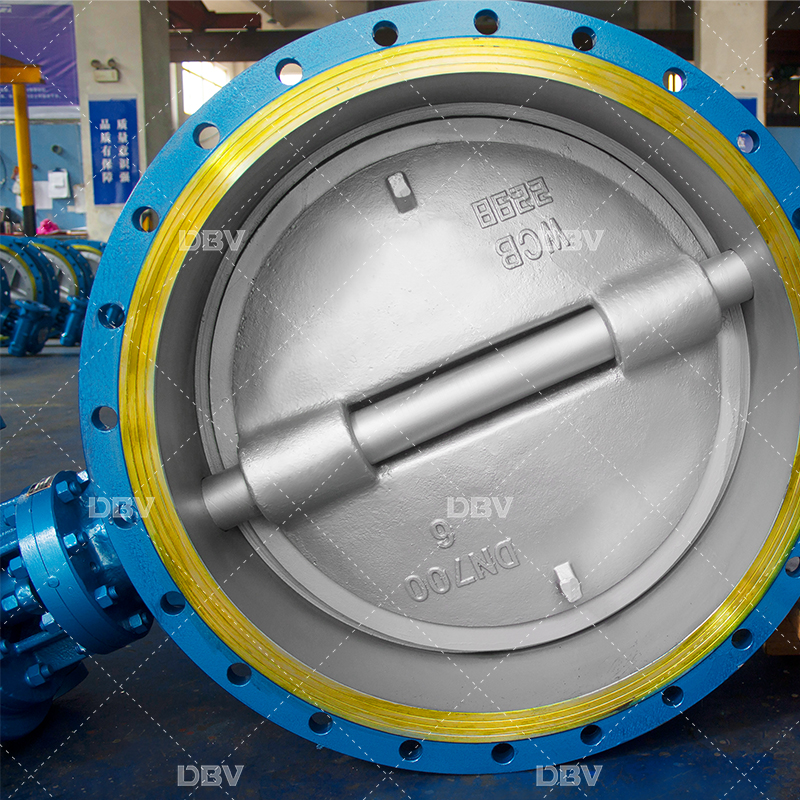

    Carbon Steel WCB PN16 Butterfly Valve Material: Body: WCB; Disc: WCB, Stem: 13Cr. Seat: SS304+graphite,Sealing ring: SS304+graphite Nominal Pressure PN10 Nominal Diameter: DN600-800

Similar items

read more

  • Details
  • Description
  • Download

Carbon Steel WCB PN16 Butterfly Valve


Valve manufacturer description

flange type triple offset butterfly valve

Name:

Cryogenic butterfly valve

Material:

Body:WCB; Disc: WCB, Stem: 13Cr. Seat: SS304+graphite

Nominal Pressure:

PN10

Nominal Diameter:

DN600-800

End Connection:

RF

Structure:

Triple Eccentricity

Operation:

Worm gear

Valve type:

Industrial Valve

Working Temp.:

-100~+750

Design Standard:

API 609

Test / Inspection:

API 598/ISO 5208

Face To Face:

API 609

 PSWe also can do according to customer's requirements.


details-dbv valve manufacturer


doubleflangetypebutterflyvalve


Up Blow-out Proof Design

Disc fixed on the stem with two pins without Chink to prevent the disc

shaken. DBV butterfly valve adopts such design of stepped shaft with

the gland. It is effectively that prevent the stem blows out from the top.



singleflangetypebutterflyvalve-324c1


One way flow/Single direction



The valve of DBV have beautiful surface with clearly words.

Leakage class:A (No leakage)





flangetypebutterflyvalvemanufacturer


Raised Face

The Rasied Face is the most common type used in process plant applications.

Different types of flange faces are used as the contact surfaces to seat thesealing

gasket material Including:FF-flat face, RF-raised face, RJ-ring joint and so on.



3g why


  Triple Eccentricity Design Features

TripleEccentricity

The stem is offset on both the X (1)and Y (2) axis of the valve's center line.

This produces a cam一like motion. The third offset (3) consists of an

inclined conical  profile machined into  the  valve sealing  surface.

This allows rotary engagement and disengagement  of   the   seat   and

seal   ring without interference.  All  rubbing between  seat  and seal ring

 is thereby eliminated. Once the seat and seal ring are  fully  engaged

 torque  is applied in order to create a bi一directional, zero leakage,

metal-to一metal seal. For this reason, triple offset valves are often

defined as "torque" seated rather than”position” seated as in the

case of resilient or high performance products.




  Multi-layer disc sealing ring

 Sealingring


Multi-layer disc sealing ring adopts ss304 and graphite laminated,

sealing by the inside graphite, applied for low and middle pressure,

as recycle water, swage treatment, city building, etc.
