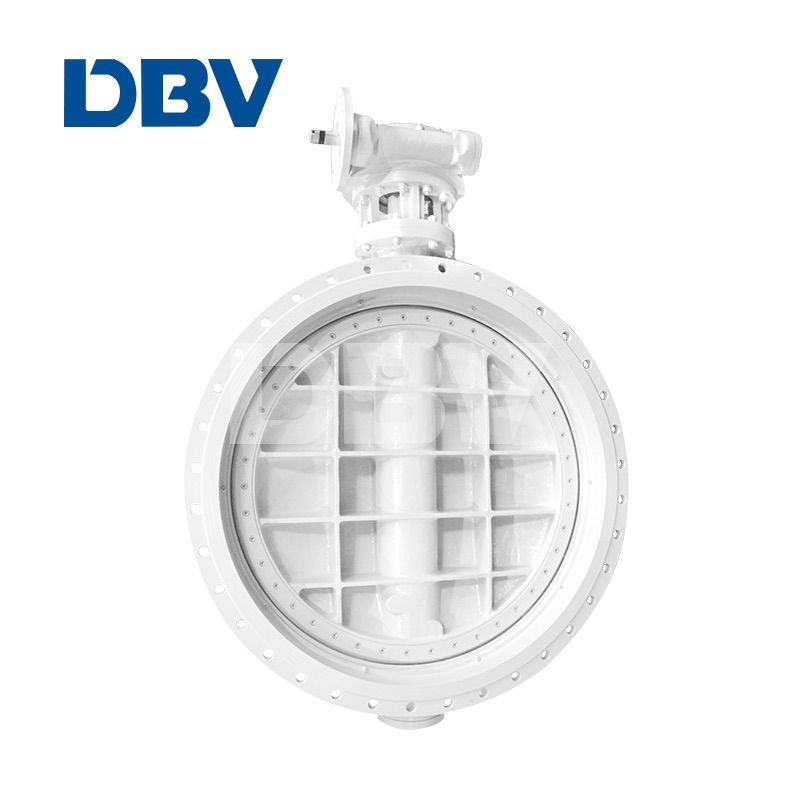

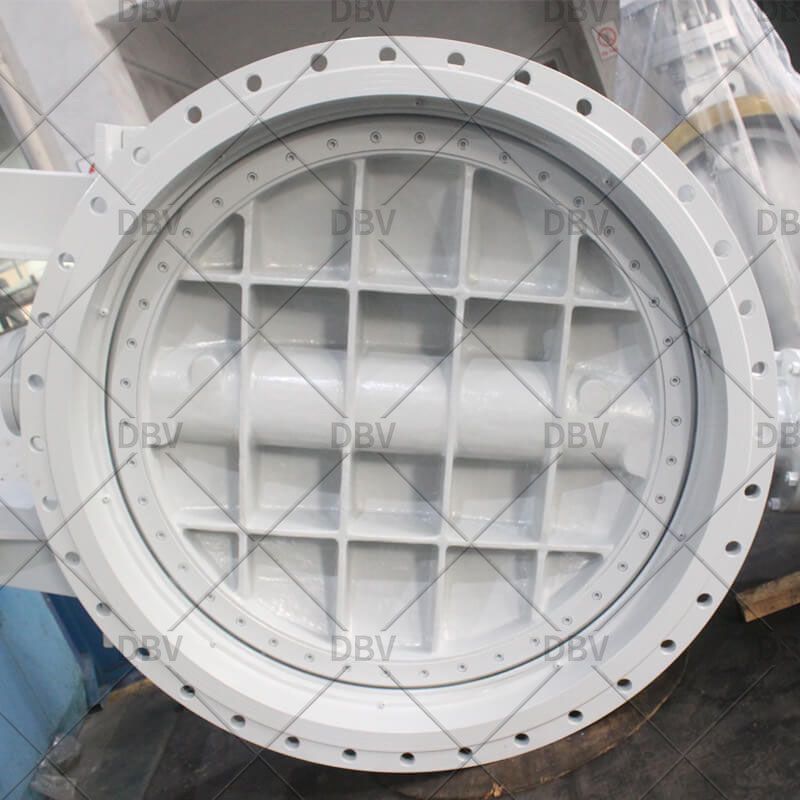

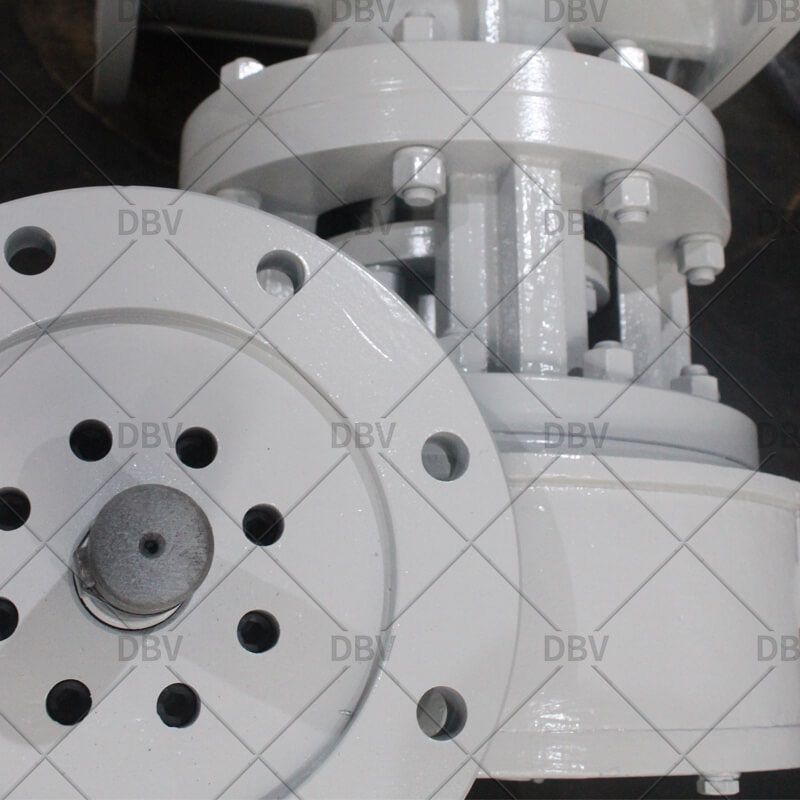

Worm Gear QT450NiCr Flange Triple Eccentric Butterfly Valve

  • Product description:

    Worm Gear QT450NiCr Flange Triple Eccentric Butterfly Valve, Industrial valve manufacturer

Similar items

read more

  • Details
  • Description
  • Download

Types of butterfly valves


Valve manufacturer description

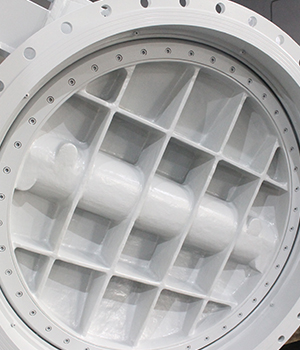

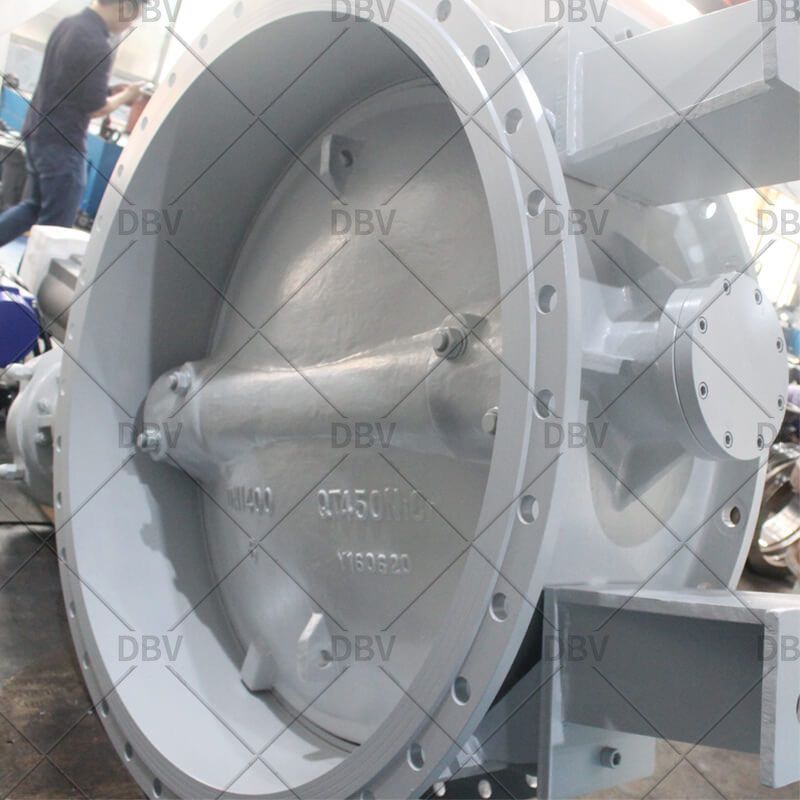

High pressure flange butterfly valve

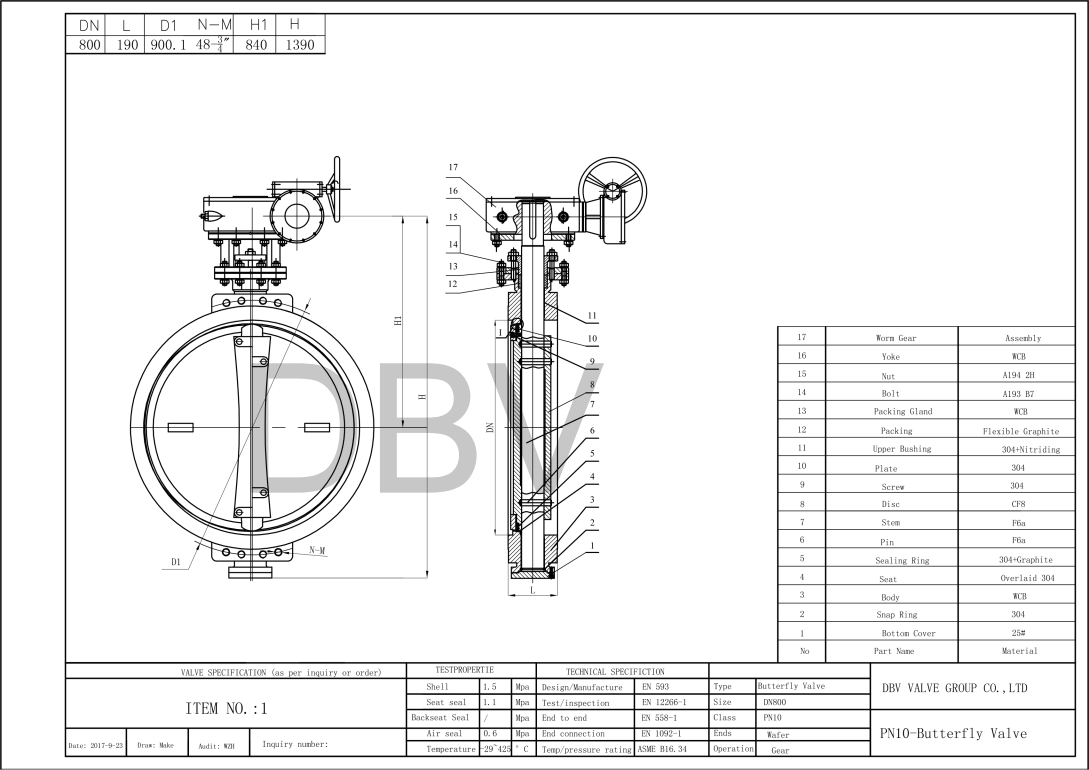

Material:

Body: WCB; Disc: CF8, Stem: 13Cr. Seat: Overlaid  304  Sealing Ring :304 +Graphite

Nominal Pressure:

PN10

Nominal Diameter:

DN800

Structure:

Triple Eccentricity

Face To Face:

API 609

Working Temp.:

-29~+450

Inspection:

API 598/ISO 5208

End Connection:

Wafer

NACE:

NACE 0175


 wafer butterfly valve

    PSWe also can do according to customer's requirements.

details-dbv valve manufacturer


doubleflangebutterflyvalve

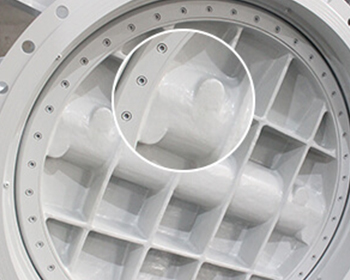

Up Blow-out Proof Design


Disc fixed on the stem with two pins without Chink to prevent the disc

shaken. DBV butterfly valve adopts such design of stepped shaft with

the gland. It is effectively that prevent the stem blows out from the top.






fireproofflangebutterflyvalve

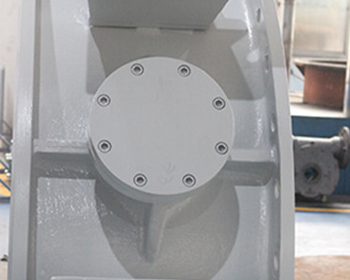

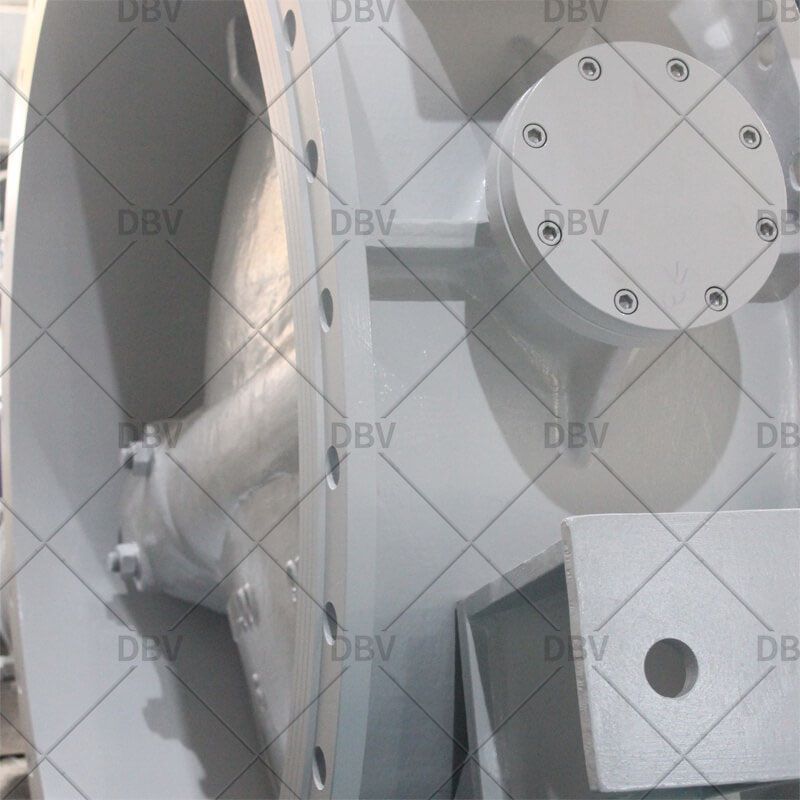

Internal Snap Ring and Bottom Cover Design

DBV butterfly valve adopts the unique stem design. The  bottom  of

the stem is slotted. The ring  is  embedded to prevent the stem blow

out. Then, the snap bottom  cover  plays  a  same role. This design

suits for the valve which is larger than four inches.




singleflangebutterflyvalve

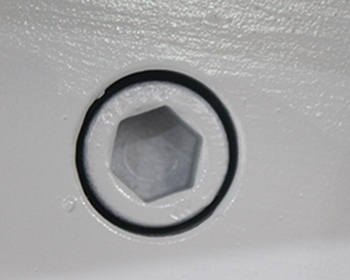

Standard Bolts & Nuts


DBV ball valve adopts the standard bolts and nuts. It could extend the

valve longer service life.





Why-dbv valve manufacturer


    Triple Eccentricity Design Features

TripleEccentricity

The stem is offset on both the X (1)and Y (2) axis of the valve's center line.

This produces a cam一like motion. The third offset (3) consists of an inclined

conical  profile machined into  the  valve  sealing  surface. This allows rotary

engagement  and  disengagement  of   the   seat   and   seal   ring   without

interference.  All  rubbing  between  seat  and seal ring is thereby eliminated.

Once the seat and seal ring are  fully  engaged  torque  is applied in order to

create a bi一directional, zero leakage,  metal-to一metal seal. For this reason,

triple offset valves are often defined as "torque" seated rather than”position”

seated as in the case of resilient or high performance products.

    Multi-layer disc sealing ring


Sealingring






Multi-layer disc sealing ring adopts ss304 and graphite laminated, sealing by


the inside graphite, applied for low and middle pressure, as recycle water, swage


treatment, city building, etc.
