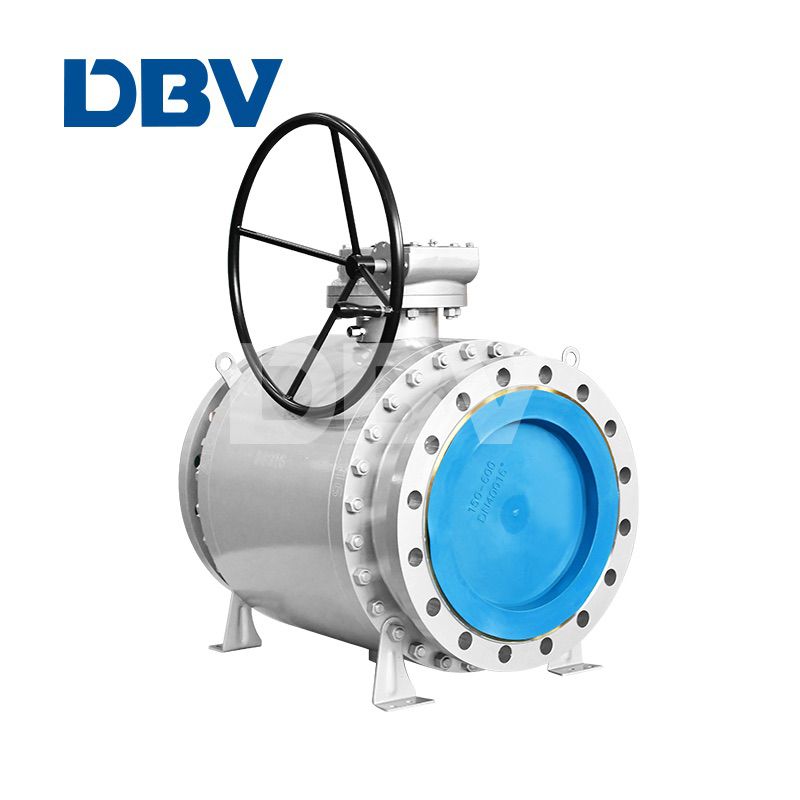

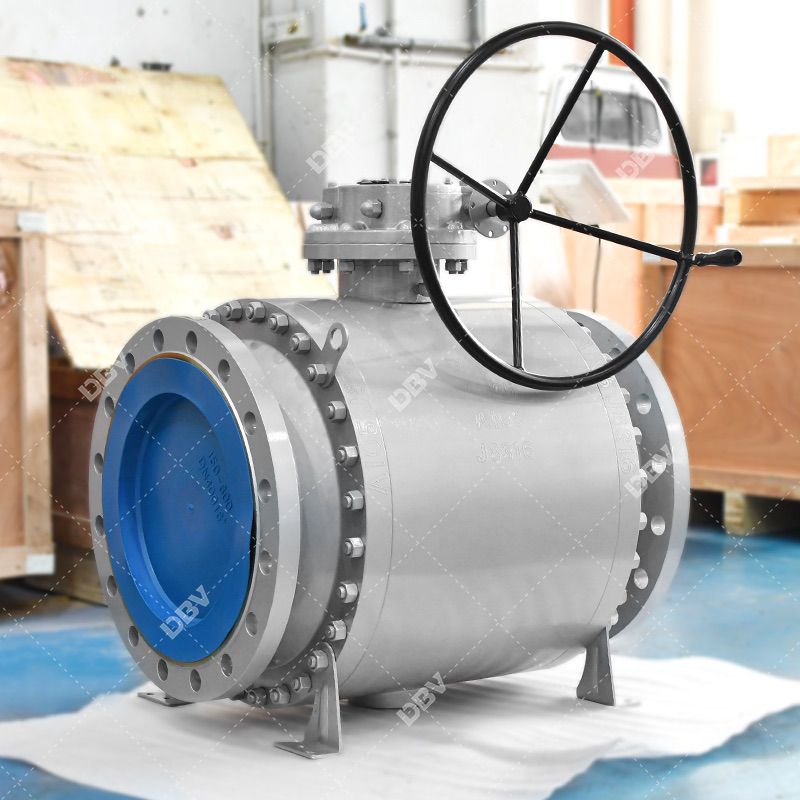

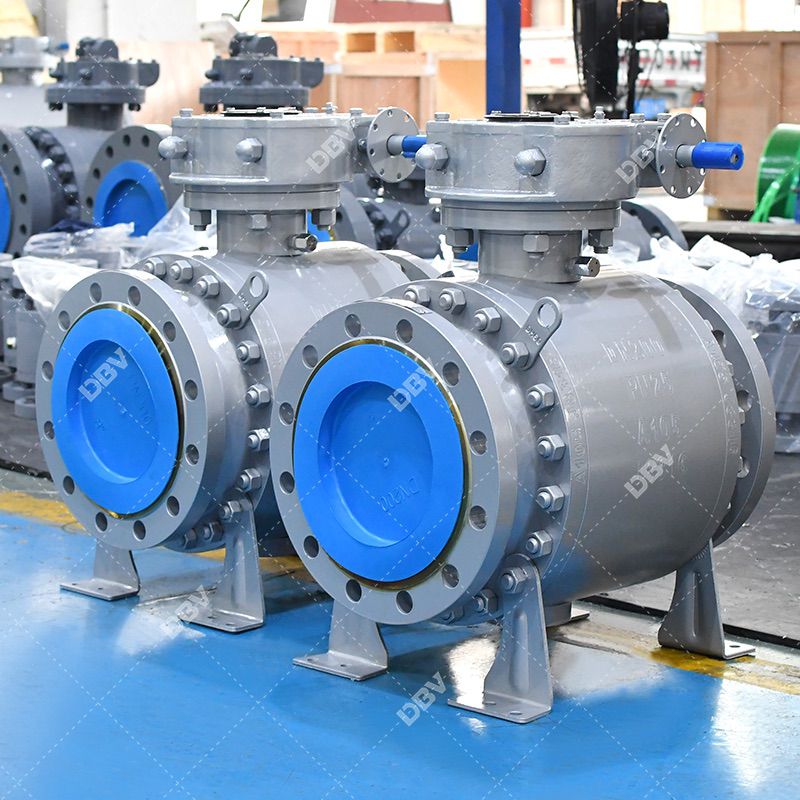

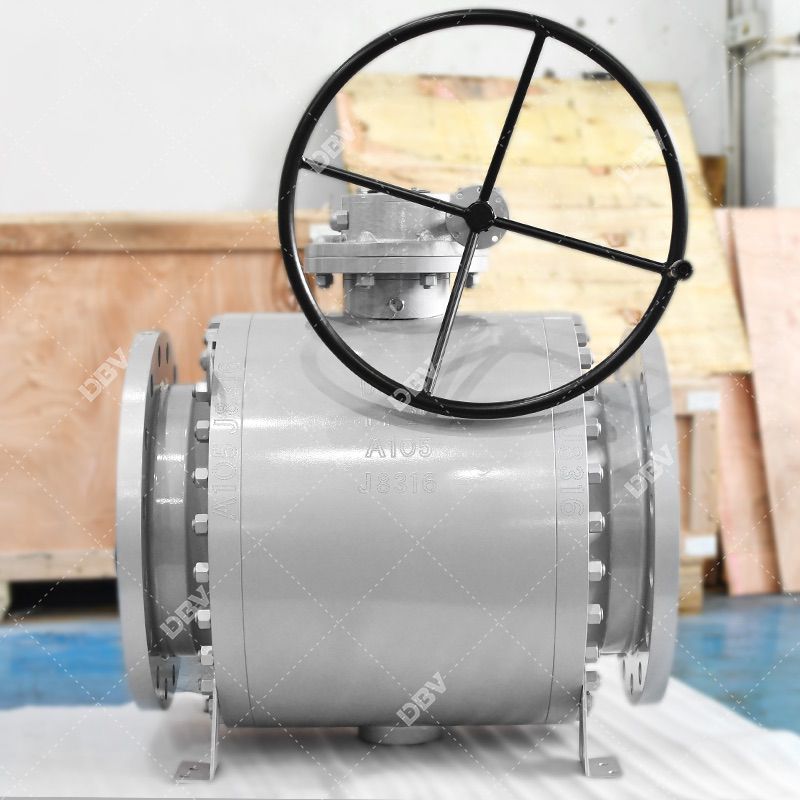

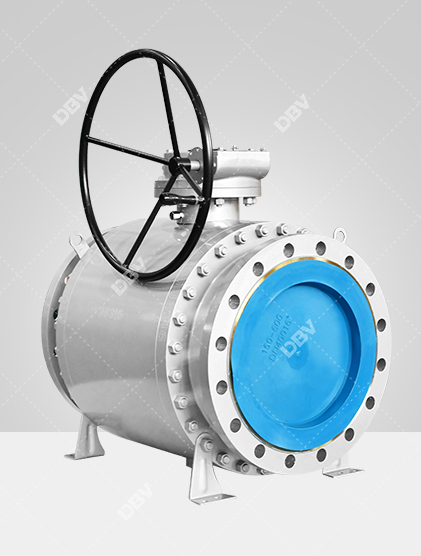

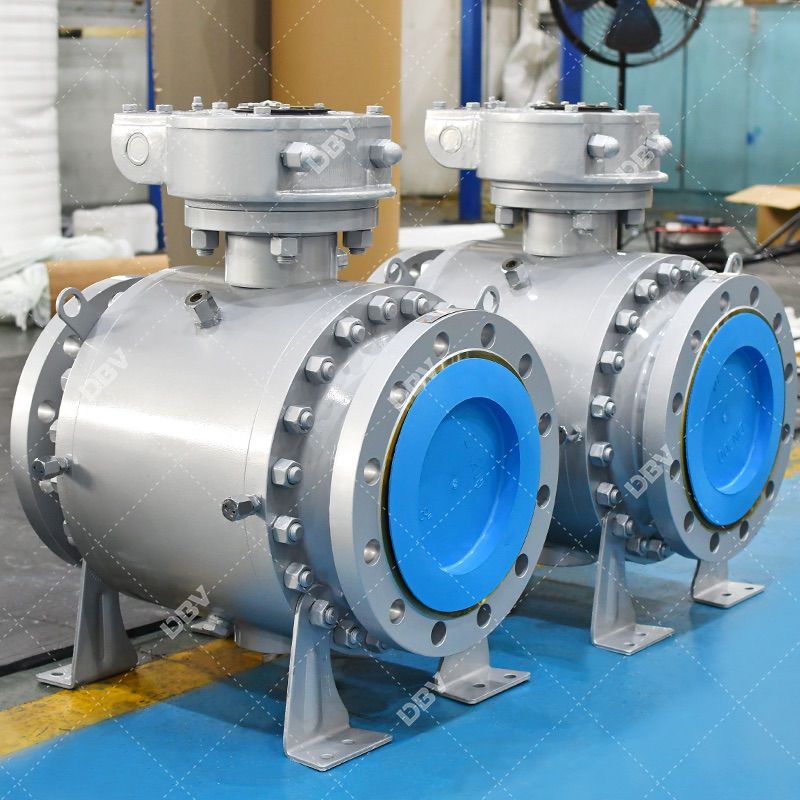

Forged Trunnion Flange Ball Valve

PS: We also can make products according to customer's drawing.

Grease Injection Design on stem

For trunnion mounted ball valve 6 inch and larger will be installed with a sealant injection fittings on the both stem and seats. When the sealing material (seat sealing or stem “O”-ring) are damaged. Leakage from the seat and stem can be prevented by injection of sealant into these fittings.

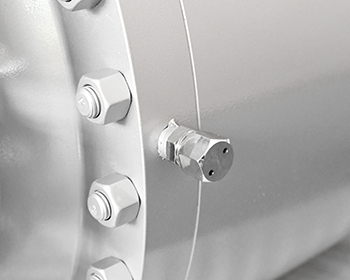

Grease Injection Design on seat

The injection systems in ball valves are emergency injection. If the valve have any leakage.

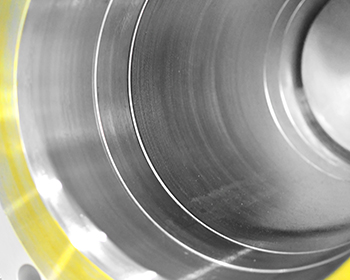

Full port/full bore

Full bore 100% open according to API 6D standard.

Raised face joint (RTJ)

RTJ surface is very clear and smooth.protected them very carefully without any surface scratch during processing the valve

Hook Design

It is more easier to handle or carry

Standard Bolts & Nuts

DBV ball valve adopts the standard bolts and nuts.  It could

extend the valve longer service life.

 Outer Trunnion Ball

The trunnion ball is the standard deisign for ball valves, which

guarantees an easy assembling into valve, a wide surface for

washers (reducing friction and torque).The ball can only turn

around its own axe (trunnion axe) and sealing is guaranteed by

the axial movement of the seats for springs or inline pressure.The

trunnion design is suggested for medium and big dimensions and

enables to avoid high torque during opening or closing phase with

inline pressure. The critical issue for these products consists in the

poor material between the bore and the washer area it occurs an

easier deformation of the ball for high pressure and consequently

leakage between seats and ball.

 Inner Trunnion Ball

This structure is suitable for small size valve or higher pressure

environment. With simple design and convenient maching, this

ball guarantees a stronger resistance of the ball than the outer,

and so less deformation in high pressure condition reducing the

risk of leakage between ball and seats. However, it's critical for

the valve assembling especially for big dimensions; limited space

for washers.

 Product Comparison

 Appearance

 Nitriding Thicken Stem Design

  Factory Direct Sales

  Quality Assurance

Our products are with 2 years quality assurance and lifelong maintenance.

Warranty  time  starts from the dispatch of the goods. Quality assurance means

all the cost arising form the quality problems caused by the manufacturer within two years will be afforded by us.

 International Logistics

Delivery Time and Method

In general, the delivery time will be confirmed with the customer in the order.

1-2 days after getting the bank receipt or deposit , the goods will make arrangements.

Shipment: CIF, FOB,etc.

Transportation: air, sea, train, logistics.

 After-sales Service

Email
We have an email specialized for customer to ask the position of the shipment

and the express, also make the complain or suggestion.

Free Installation Guide

After receiving the goods, you will get a professional installation guide.

  Q1. Are you a factory or trading company?

  A: We are a factory specialized in manufacturing valves over 15 years. We both have factory in Wenzhou and Shanghai.

  Q2. Can I have a sample order for valve?

  A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable. The sample is free.

  Q3.Do you have any MOQ limit for valve order?

  A: Low MOQ, 1pc for sample checking is available

  Q4. How do you ship the goods?

  A: We usually ship by sea, by air, by courier, etc.

  Q5. How to check the process of the order?

  A: You can check your order on our website after we provide you account and password.

  Q6: Do you offer guarantee for the products?

  A: Yes, we offer 2 years warranty to our products and we could repair freely for lifelong time.

  Q7: Can you print our Logo on the valves?

  A:Yes, we can totally produce products according to your special request, even manufacture it base on your drawing.
  Q8: How can I check your factory situation while it's difficult for me to come to China?
  A：We have photos and videos on our website, youtube and facebook, It shows every step of the manufacturing.
