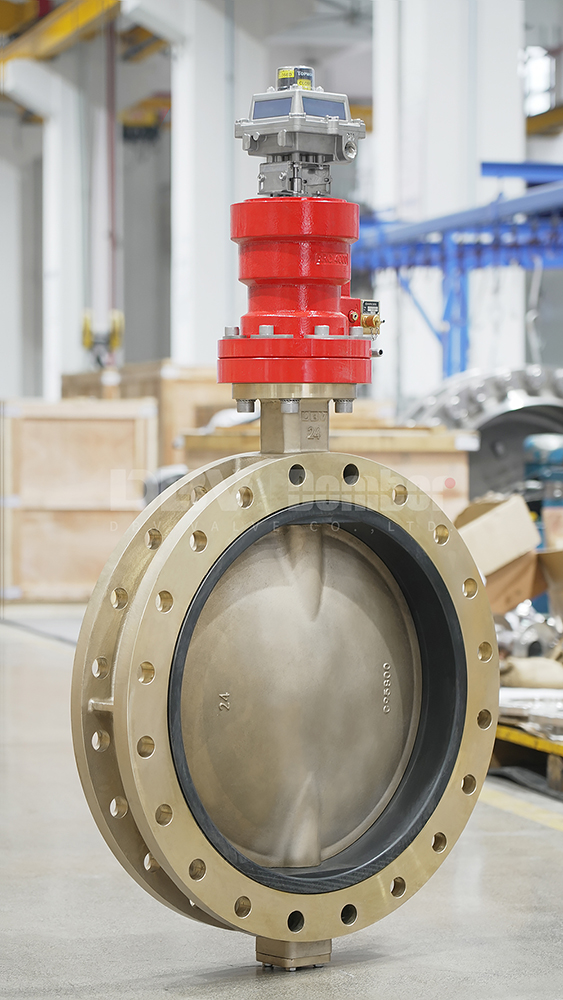

The 24-Inch C95800 Nickel Aluminum Bronze Hydraulic Concentric Butterfly Valve is designed for large-diameter pipeline systems where corrosion resistance, mechanical strength, and reliable operation are essential.
With a nominal size of 24 inches (DN600), the valve is suitable for large-volume fluid transportation and isolation applications. Its C95800 Nickel Aluminum Bronze construction provides a combination of strength, corrosion resistance, and erosion resistance that makes the material particularly attractive for marine and water-service environments.
The concentric butterfly valve uses a straightforward disc-and-seat configuration to control or isolate the flow. A hydraulic actuator provides the operating force required for the large-diameter valve and allows the valve to be operated remotely or integrated into an automated control system.
The valve is particularly suitable for water treatment plants, desalination facilities, seawater pipelines, marine infrastructure, municipal water networks, power plants, and industrial water systems.
The 24-inch / DN600 size is designed for large-diameter pipeline systems requiring high flow capacity and reliable isolation.
C95800 Nickel Aluminum Bronze provides good resistance to corrosion and erosion, making it suitable for demanding water and marine environments.
The hydraulic actuator provides the required operating force for a large-diameter butterfly valve and supports remote and automated operation.
The concentric structure provides a relatively simple and compact valve configuration for fluid isolation and flow-control applications.
Nickel Aluminum Bronze is widely used in marine-related equipment and seawater applications because of its corrosion-resistant properties.
The valve can be incorporated into municipal, industrial, marine, desalination, and water-treatment pipeline systems.
| Parameter | Specification |
|---|---|
| Valve Type | Concentric Butterfly Valve |
| Nominal Size | 24" / DN600 |
| Body Material | C95800 Nickel Aluminum Bronze |
| Actuation | Hydraulic |
| Connection | Flanged |
| Working Medium | Water / Seawater / Industrial Fluids |
| Application | Large-Diameter Pipeline Systems |
| Operation | Manual / Remote Hydraulic Control* |
*Final actuator configuration and operating method should be confirmed according to project requirements.
Depending on the final valve configuration and project specification, applicable standards may include:
The exact design, pressure class, flange standard, testing requirements, and material specifications should be confirmed according to the customer's project requirements.
A butterfly valve controls flow by rotating a disc positioned inside the pipeline.
When the disc rotates into the open position, the fluid can pass through the valve with relatively low flow resistance. Rotating the disc toward the closed position gradually restricts the flow until the pipeline is isolated.
For a 24-inch valve, the operating torque can be considerable. The hydraulic actuator supplies the necessary force to rotate the disc while allowing remote operation.
This makes hydraulic actuation particularly useful for large valves installed in water infrastructure, pumping stations, marine facilities, and other locations where reliable remote operation is required.
Suitable for large-diameter water pipelines within municipal and industrial water treatment facilities.
C95800 Nickel Aluminum Bronze is a suitable material choice for equipment exposed to seawater and desalination environments.
The material's corrosion-resistant characteristics make it suitable for marine water systems and related infrastructure.
The DN600 configuration can be used for large-volume municipal water distribution networks.
Applicable to cooling-water, circulating-water, and other industrial water systems used in power plants.
Can be integrated into large industrial circulation and process-water pipelines.
C95800 Nickel Aluminum Bronze combines several properties that are valuable for demanding fluid-service applications.
Its corrosion resistance makes it particularly attractive for seawater and marine environments, while its mechanical strength and resistance to erosion help support long-term performance.
For large valves operating continuously in water environments, selecting an appropriate material can help reduce maintenance requirements and improve overall equipment reliability.
As pipeline diameter increases, valve operation becomes more demanding.
A 24-inch butterfly valve needs to manage a significantly larger flow passage while providing sufficient operating torque and dependable isolation.
The combination of a large-diameter concentric butterfly valve, C95800 Nickel Aluminum Bronze construction, and hydraulic actuation provides a practical solution for applications where:
The final valve configuration should always be selected based on operating pressure, temperature, flow velocity, medium composition, required sealing performance, and actuator requirements.
DBVValve manufactures industrial valve solutions for water, oil & gas, LNG, petrochemical, marine, power generation, and other demanding industrial applications.
Its product portfolio includes butterfly valves, ball valves, gate valves, globe valves, check valves, cryogenic valves, and automated valve solutions for international industrial projects.
Looking for a 24-Inch C95800 Nickel Aluminum Bronze Hydraulic Butterfly Valve for a water, seawater, marine, or desalination project?
Provide your required pressure class, operating temperature, medium, flow conditions, flange standard, and actuator requirements, and DBVValve can help develop the appropriate valve configuration for your application.
