Bronze C95800 Lug Triple  Eccentric Butterfly Valves
  • Bronze C95800 LugTriple Eccentric Butterfly Valves
  • Lug Butterfly Valve manufacturer
  • Industrial Valve manufacturer
  • Lug triple offset Butterfly Valve supplier
  • Lug Bronze Butterfly Valve
向上
向下

Bronze C95800 Lug Triple Eccentric Butterfly Valves

  • Product description:

    Bronze C95800 Lug Triple Eccentric Butterfly Valve Material: Body: bronze C95800; Disc: bronze C95...

Similar items

read more

  • Details
  • Description
  • Download

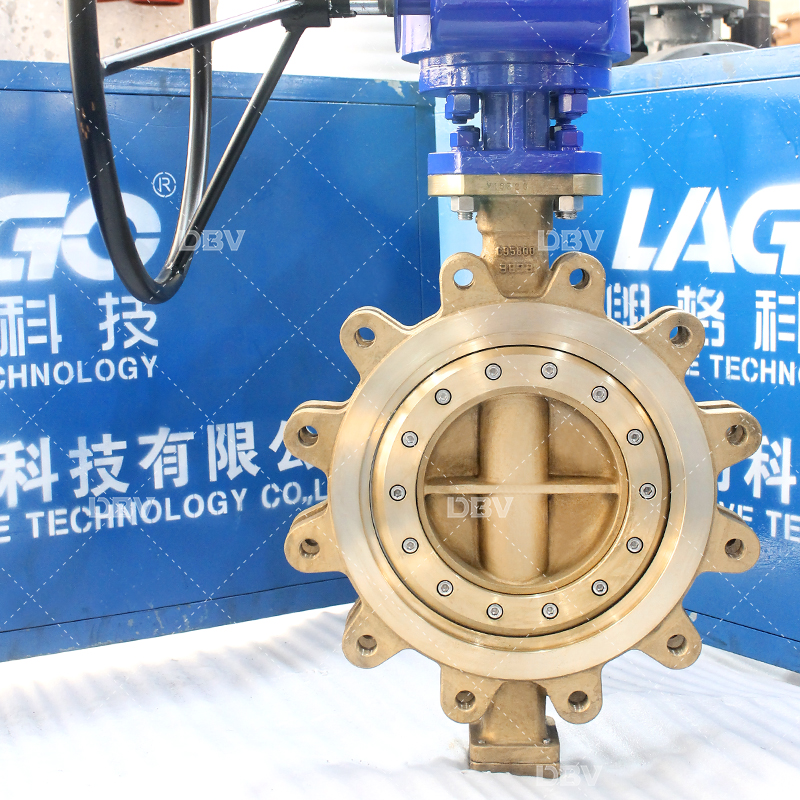

Bronze C95800 Lug Triple  Eccentric Butterfly Valves

  Product Description

Bronze Lug Butterfly Valve

Name:

Bronze C95800 Lug Triple Eccentric Butterfly Valves

Material:

Body: C95800; Disc: C95800, Stem: SS. Seat: 304+STL

Seal Ring:304+Graphite

Nominal Pressure:

CL 150

Nominal Diameter:

14"

End Connection:

Lug

Structure:

Triple Eccentricity

Operation:

Worm gear

Valve type:

Industrial Valve

Working Temp.:

-10~+200

Test / Inspection:

ISO 5208/API 598

Face To Face:

API 609



    PSWe also can do according to customer's requirements.

  Product Details



triple offset butterfly valve lug type

Unique Plum Pin Design


Adopts  the  plum pin design,  which DBV butterfly valve

is  different  from  traditional  pin  design.  As we all know,

traditional  pin is straight to the stem,  but  the plum pin is

tilted to the stem. From the aspect of application, the plum

pin could afford higher pressure and larger diameter.






lug type triple eccentric butterfly valve

Oval Turtle Disc Design


DBV butterfly valve adopts the unique oval turtle

advantages  such  as   high   strength,   good  flow

truss  structure  design  of  the  disc.  It  has several

characteristics and low flow-resistance coefficient.







lug type butterfly valve vendorMulti-layer Design


DBV butterfly valve adopts the design of  multi-layer disc sealing ring, sealing

by the inside graphite, applied for low and middle pressure, as recycle water,

swage treatment, city building, etc.










  Why Choose DBV Valve?

  Triple Eccentricity Design Features

 Triple Offset Butterfly Valve





    The stem is offset on both the X (1)and Y (2) axis of the valve's

center line. This produces a cam一like motion. The third offset (3)

consists of an inclined conical  profile machined into  the  valve

sealing  surface. This allows rotary engagement and disengagement

of   the   seat   and   seal   ring without interference.  All  rubbing

between  seat  and seal ring is thereby eliminated. Once the seat

and seal ring are  fully  engaged  torque  is applied in order to

create a bi一directional, zero leakage,  metal-to一metal seal. For

this reason, triple offset valves are often defined as "torque" seated

rather than”position” seated as in the case of resilient or high

performance products.










  Multi-layer disc sealing ring

 Industrial triple offset butterfly valve






    Multi-layer disc sealing ring adopts ss304 and graphite laminated, sealing

by the inside graphite, applied for low and middle pressure, as recycle water,

swage treatment, city building, etc.












  Product Comparison


  Disc Design

 Disc Design


  Appearance Design

Appearance Comparsion




  Factory Direct Sales

DBV Butterfly Valve


  Quality Assurance

 Butterfly Valve Quality Assurance


        Our products are with 2 years quality assurance and lifelong maintenance.

Warranty  time  starts from the dispatch of the goods. Quality assurance means

all the cost arising form the quality problems caused by the manufacturer within

two years will be afforded by us.



  International Logistics

Butterfly Valve Delivery


Delivery Time and Method

   In general, the delivery time will be confirmed with the customer in the order,

1-2 days after getting the bank receipt or deposit , the goods will make arrangements.

   Shipment: CIF, FOB,etc.

   Transportation: air, sea, train, logistics.



  After-sales Service

Butterfly Valve After sales



Email
  We have an email specialized for customer to ask the position of the shipment

and the express, also make the complain or suggestion.



Free Installation Guide

     After receiving the goods, you will get a installation guide from our professional techs.








  F&Q

  Q1. Are you a factory or trading company?

  A: We are a factory specialized in manufacturing valves over 15 years. We both have factory in Wenzhou and Shanghai.

  Q2. Can I have a sample order for valve?

  A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable. The sample is free.

  Q3.Do you have any MOQ limit for valve order?

  A: Low MOQ, 1pc for sample checking is available

  Q4. How do you ship the goods?

  A: We usually ship by sea, by air, by courier, etc.

  Q5. How to check the process of the order?

  A: You can check your order on our website after we provide you account and password.

  Q6: Do you offer guarantee for the products?

  A: Yes, we offer 2 years warranty to our products and we could repair freely for lifelong time.

  Q7: Can you print our Logo on the valves?

  A:Yes, we can totally produce products according to your special request, even manufacture it base on your drawing.
  Q8: How can I check your factory situation while it's difficult for me to come to China?
  AWe have photos and videos on our website, youtube and facebook, It shows every step of the manufacturing.
