Lug CF3 Triple Offset Butterfly Valves

  • Product description:

    Lug CF8 Triple Offset Butterfly Valves Material: Body: CF3; Disc: CF3, Stem: 304. Seat: SS304+STL,Sealing ring: SS304+STL Nominal Pressure Class 150LB Nominal Diameter: DN200-450 End Connection:

Similar items

read more

  • Details
  • Description
  • Download

Lug CF3 Triple Offset Butterfly Valves

Valve manufacturer description

Lug Valve

Name:

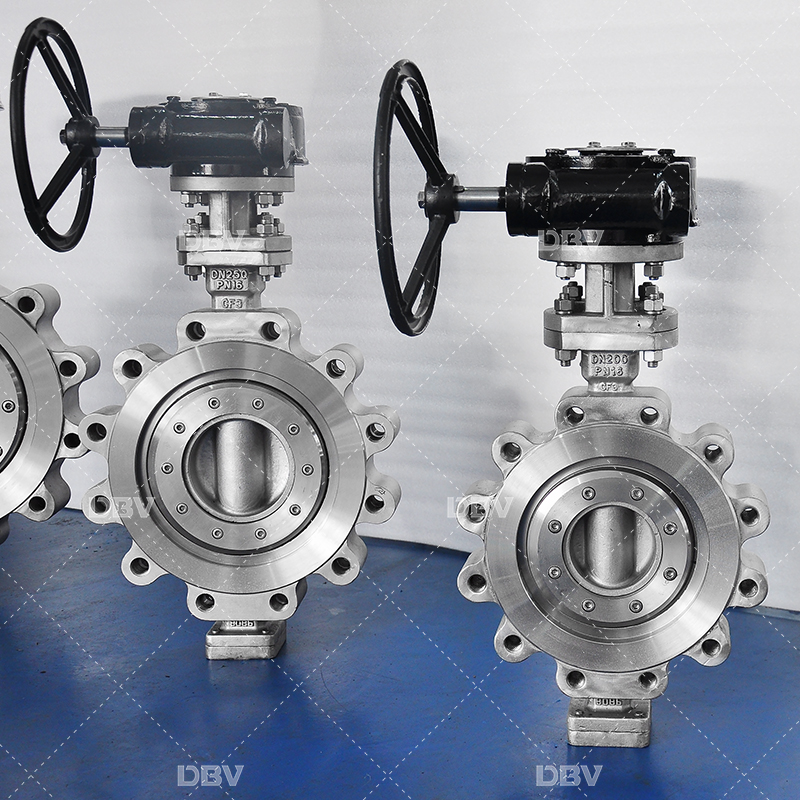

Lug CF3 Triple Eccentric Butterfly Valves

Material:

Body: CF3; Disc: CF3, Stem: SS. Seat:304+Graphite

Nominal Pressure:

PN16

Nominal Diameter:

DN200~DN400

End Connection:

Lug

Structure:

Triple Eccentricity

Operation:

Worm gear

Valve type:

Industrial Valve

Working Temp.:

-254~+425

Test / Inspection:

ISO 5208/API 598

Face To Face:

API 609

 PSWe also can do according to customer's requirements.


details-dbv valve manufacturer


tripleeccentricbutterflyvalve



Oval Turtle Disc Design


DBV butterfly valve adopts the unique oval turtle

advantages  such  as   high   strength,   good  flow

truss  structure  design  of  the  disc.  It  has several

characteristics and low flow-resistance coefficient.




Standardboltsandnuts




Up Blow-out Proof Design


DBV butterfly valve adopts the design of stepped shaft

with  the  gland.  It  is effectively that prevent the stem

blows out from the top.





Why-dbv valve manufacturer


  Triple Eccentricity Design Features

 TripleEccentricityThe stem is offset on both the X (1)and Y (2) axis of the valve's

center line. This produces a cam一like motion. The third offset (3)

consists of an inclined conical  profile machined into  the  valve

sealing  surface. This allows rotary engagement and disengagement

of   the   seat   and   seal   ring without interference.  All  rubbing

between  seat  and seal ring is thereby eliminated. Once the seat

and seal ring are  fully  engaged  torque  is applied in order to

create a bi一directional, zero leakage,  metal-to一metal seal. For

this reason, triple offset valves are often defined as "torque" seated

rather than”position” seated as in the case of resilient or high performance products.


  Multi-layer disc sealing ring

 Sealingring




Multi-layer disc sealing ring adopts ss304 and graphite laminated, sealing

by the inside graphite, applied for low and middle pressure, as recycle water,

swage treatment, city building, etc.
