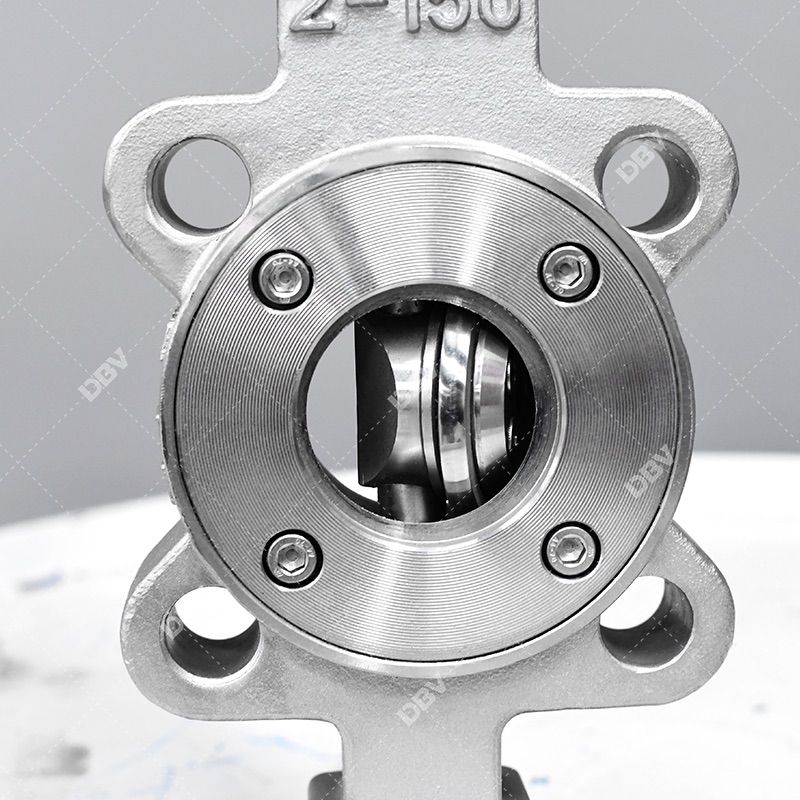

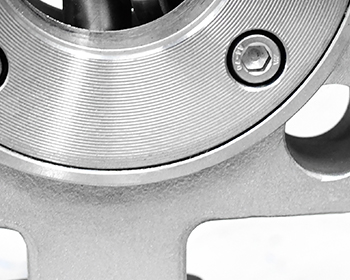

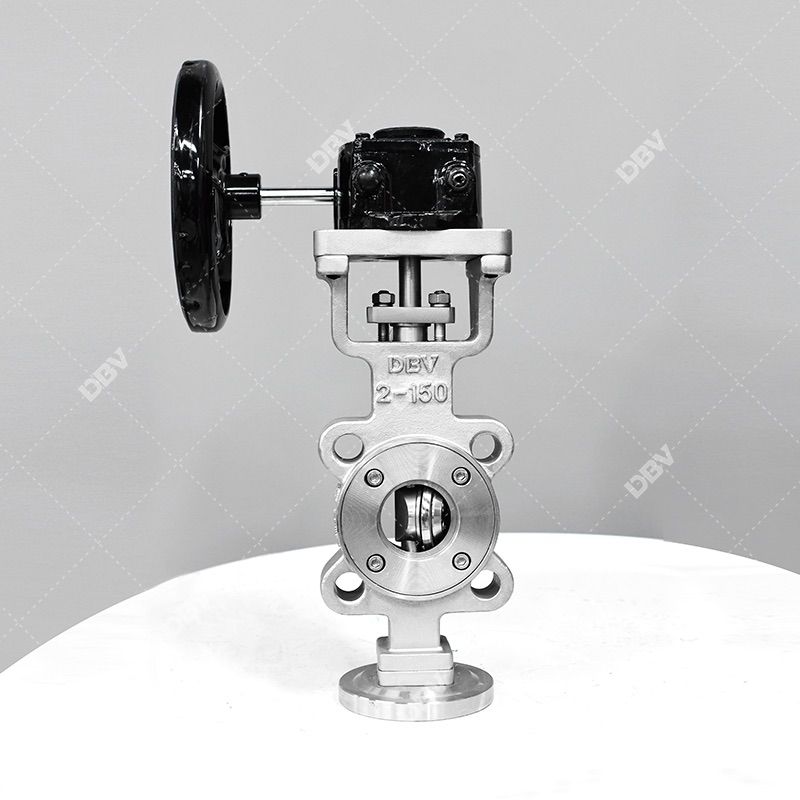

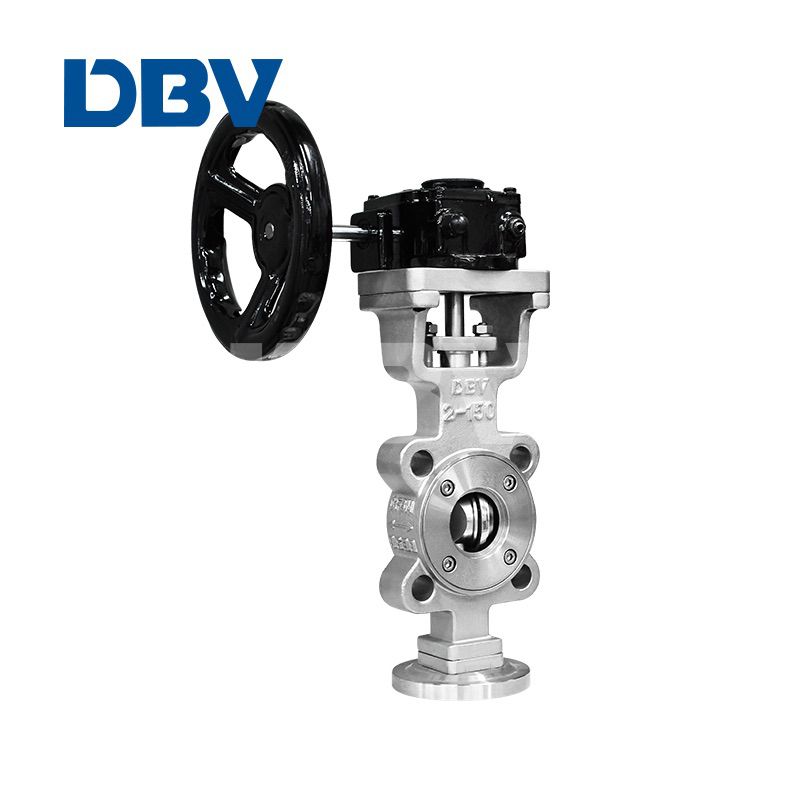

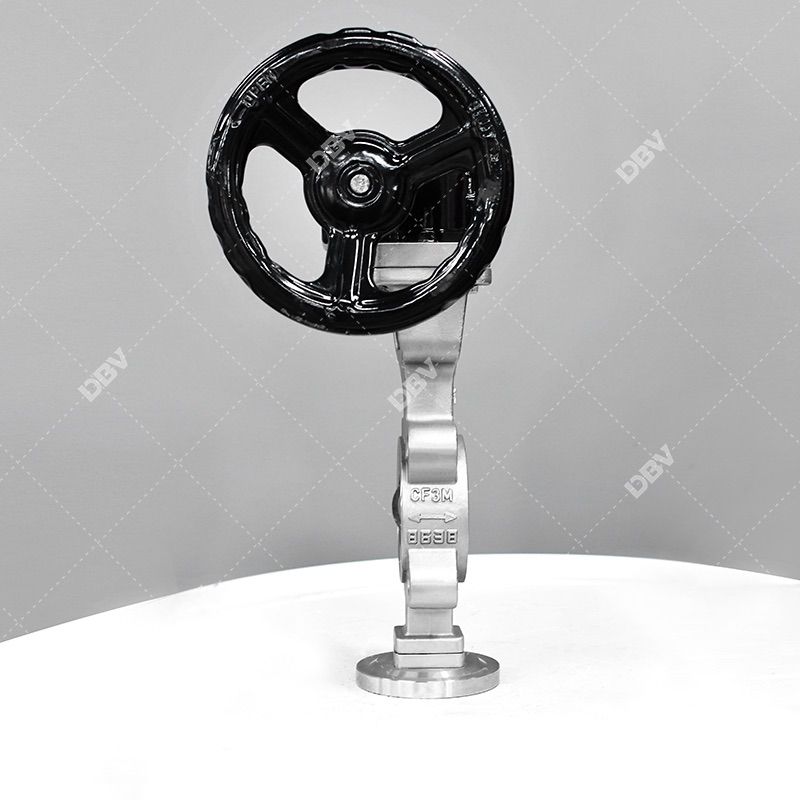

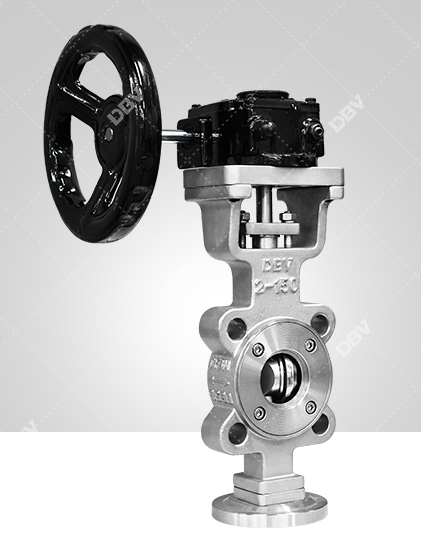

Name: |
Butterfly Valve Wafer Type |
Material: |
Body: WCB; Disc: WCB, Stem: 13Cr. Seat: SS304+STL,Sealing ring: SS304+STL |
Nominal Pressure: |
Class 150 |
Nominal Diameter: |
12" |
End Connection: |
Wafer |
Structure: |
Triple Eccentricity |

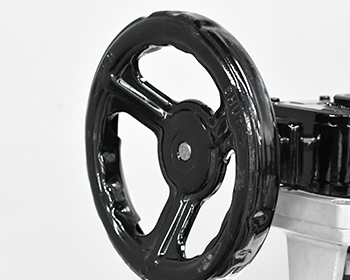

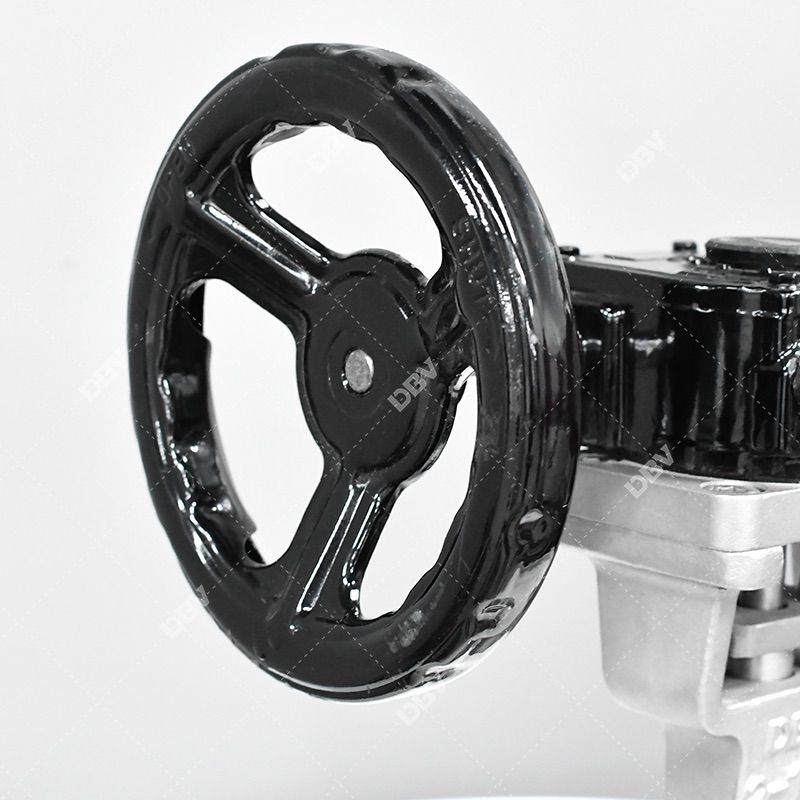

Operation: |
Worm gear |
Valve type: |
Industrial Valve |
Working Temp.: |
-29℃~+425℃ |
Design Standard: |
API 609 |
Test / Inspection: |
API 598 |
Face To Face: |
API 609 |
PS: We also can do according to customer's requirements.

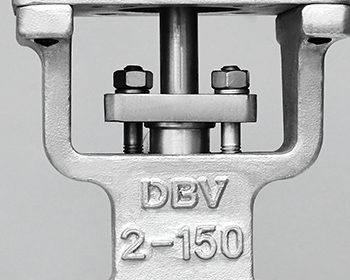

Integral Yoke Design
DBV adopts this unique design. This design not only
make the valve more beautiful, and it is convenient to
install the driving devices, such as worm gear, pneumatic
actuator, electric actuator.
Up Blow-out Proof Design
DBV butterfly valve adopts the design of stepped shaft
with the gland. It is effectively that prevent the stem
blows out from the top.
Fully Metal to Metal Design
DBV butterfly valve adopts the design of fully metal. The
alloy steel is overlayed on the sealing surface, which solves
the problems of hard working conditions, such as high
pressure, low temperature and high temperature effectively.

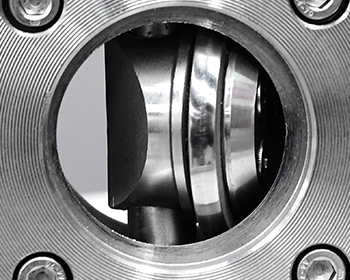

Triple Eccentricity Design Features
The stem is offset on both the X (1)and Y (2) axis of the valve's
center line. This produces a cam一like motion. The third offset (3)
consists of an inclined conical profile machined into the valve
sealing surface. This allows rotary engagement and disengagement
of the seat and seal ring without interference. All rubbing
between seat and seal ring is thereby eliminated. Once the seat
and seal ring are fully engaged torque is applied in order to
create a bi一directional, zero leakage, metal-to一metal seal. For
this reason, triple offset valves are often defined as "torque" seated
rather than”position” seated as in the case of resilient or high performance products.
Multi-layer disc sealing ring
Multi-layer disc sealing ring adopts ss304 and graphite laminated, sealing
by the inside graphite, applied for low and middle pressure, as recycle water,
swage treatment, city building, etc.
