3 PC/3 piece forged Trunnion Ball Valve - Trunnion mounted ball valve

products

Home Products Ball Valves Trunnion mounted ball valve

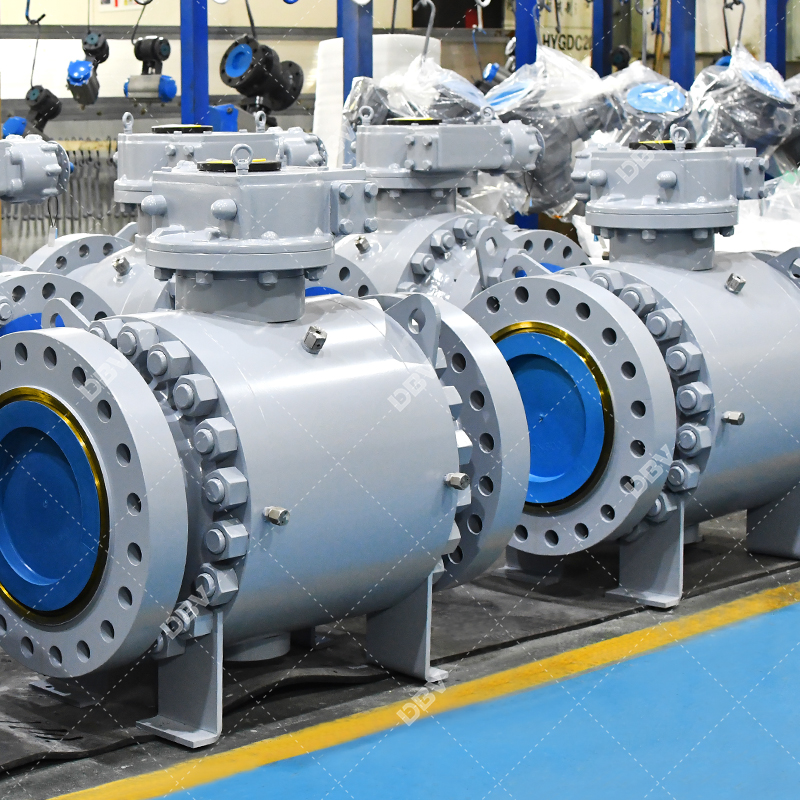

3 PC/3 piece forged Trunnion Ball Valve
  • Trunnion mounted ball valve gear box operated
  • Big size 3 pieces ball valve
  • fire safe ball valve manufacturer
向上
向下

3 PC/3 piece forged Trunnion Ball Valve

  • Product description:

    DBV valve one of the most reliable casting and forged ball valve manufacturer in industry valve. According with API,ASME and ANSI standards.With features such as Double block & bleed,Spring supported seat rings,Anti-blowout stems,Anti-static design.

Similar items

read more

  • Details
  • Description
  • Download


Forged Trunnion Flange Ball Valve

1g Valve description


TrunnionBallValveprofessionalmanufacturer-7dee9

Material:

Body: LF2

Nominal Pressure

600#

Nominal Diameter:

12"

End Sealing:

RF

Face To Face:

API 608

Working Temperature:

-29℃~425℃

Test And Inspection:

API 598/ISO 5208

End Connection:

Flange

NACE:

NACE 0175

Certificate:

ISO9001, ISO14001, ISO28001, TS, CE,TUV


PS
We also can make products according to customer's drawing.


2g valve details


GreaseonStem



Grease Injection Design On Stem

DBV trunnion ball valve (DN≥150,NPS6)adopts the design of grease

injection.  It  is effectively avoiding the leakage caused by the stem "O"rings are unexpectedly damaged.






Greaseonseat



Grease Injection Design On Seat



DBV trunnion ball valve (DN≥150,NPS6)adopts the design of grease

injection.  It  is effectively avoiding the leakage caused by the seat rings

are unexpectedly damaged.





BlowoffDesign


Blow-off Design



When the valve is closed, the pressure in the body cavity will be

accumulated , and the pressure is removed by opening the blow-off

valve.





drainvalve


Drain Valve Design


The seal of the trunnion ball valve is achieved by the floating seat.When

the waste of the inner cavity is removed through drain valve, the

pressure will exist between the inlet and outlet end of the compression

seat, and it is easier to achieve the sealing performance.





Flange






Standard Bolts & Nuts

DBV ball valve adopts the standard bolts and nuts.  It could

extend the valve longer service life.






valvehook






 Hook Design






antistaticdesign




Anti-static design

DBV trunnion ball valve design forms a electrostatic channel through ball, stem and body.

This structure leads the electrostatic spark to the earth caused by the  friction between the

ball and the seat. This structure could avoid the fire disaster and explosive accident.







platform





Platform

The platform design is convenient for assembling worm gear, pneumatic, electric, hydraulic and

pneumatic & hydraulic actuators.







jiaojia






Valve Stand





3g why dbv valve


 Outer Trunnion Ball

OuterTrunnionBall

The trunnion ball is the standard deisign for ball valves, which guarantees an

easy assembling into valve, a wide surface for washers (reducing friction and

 torque).The ball can only turn around its own axe (trunnion axe) and sealing

is guaranteed by the axial movement of the seats for springs or inline pressure.

The trunnion design is suggested for medium and big dimensions and enables to

 avoid high torque during opening or closing phase with inline pressure. The critical

issue for these products consists in the poor material between the bore and the

 washer area it occurs an easier deformation of the ball for high pressure and

 consequently leakage between seats and ball.



 Inner Trunnion Ball

InnerTrunnionBall


This structure is suitable for small size valve or higher pressure

environment. With simple design and convenient maching, this

ball guarantees a stronger resistance of the ball than the outer,

and so less deformation in high pressure condition reducing the

risk of leakage between ball and seats. However, it's critical for

the valve assembling especially for big dimensions; limited space

for washers.





 Product Comparison

 Appearance

Paintingcomparision

Ball Valve Painting

 Nitriding Thicken Stem Design

Ball Valve Stem

  Factory Direct Sales

DBVFACTORYDBV Butterfly Valve

Quality, transportation, after-sales

4g FQ


  Q1. Are you a factory or trading company?

  A: We are a factory specialized in manufacturing valves 20 years. We both have factory in Wenzhou and Shanghai.

  Q2. Can I have a sample order for valve?

  A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.

  Q3.Do you have any MOQ limit for valve order?

  A: Low MOQ, 1pc for sample checking is available

  Q4. How do you ship the goods?

  A: We usually ship by sea, by air, by courier, etc.

  Q5. How to check the process of the order?

  A: You can check your order on our website after we provide you account and password.

  Q6: Do you offer guarantee for the products?

  A: Yes, we offer 2 years warranty to our products and we could repair freely for lifelong time.

  Q7: Can you put our Logo on the valves?

  A:Yes, we can totally produce products according to your special request, even manufacture them base on your drawing.

  Q8: How can I check your factory situation while it's difficult for me to come to China?

  AWe have photos and videos on our website, youtube and facebook, It shows every step of our manufacturing.
