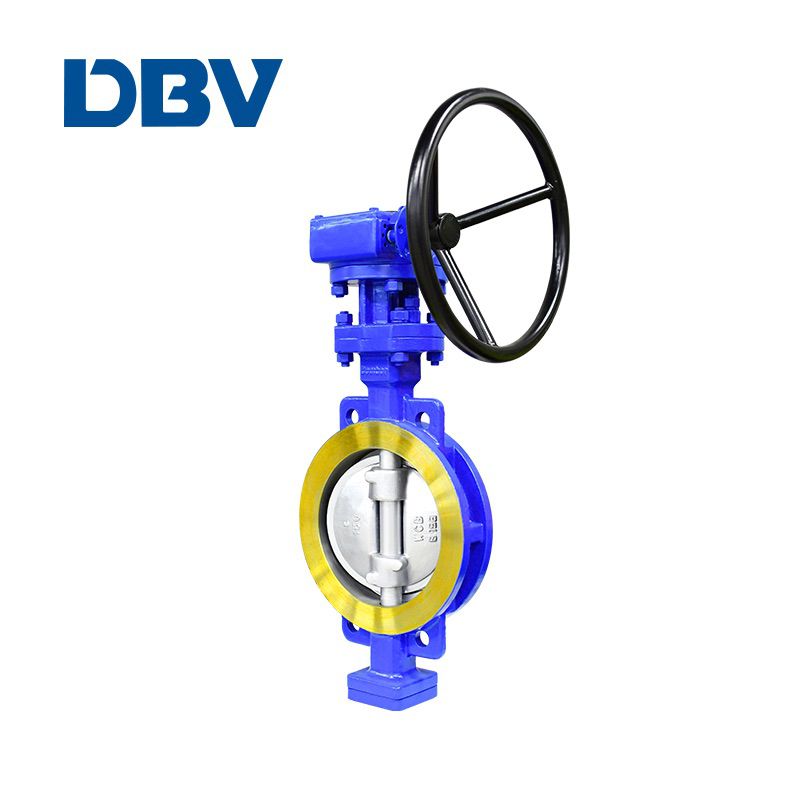

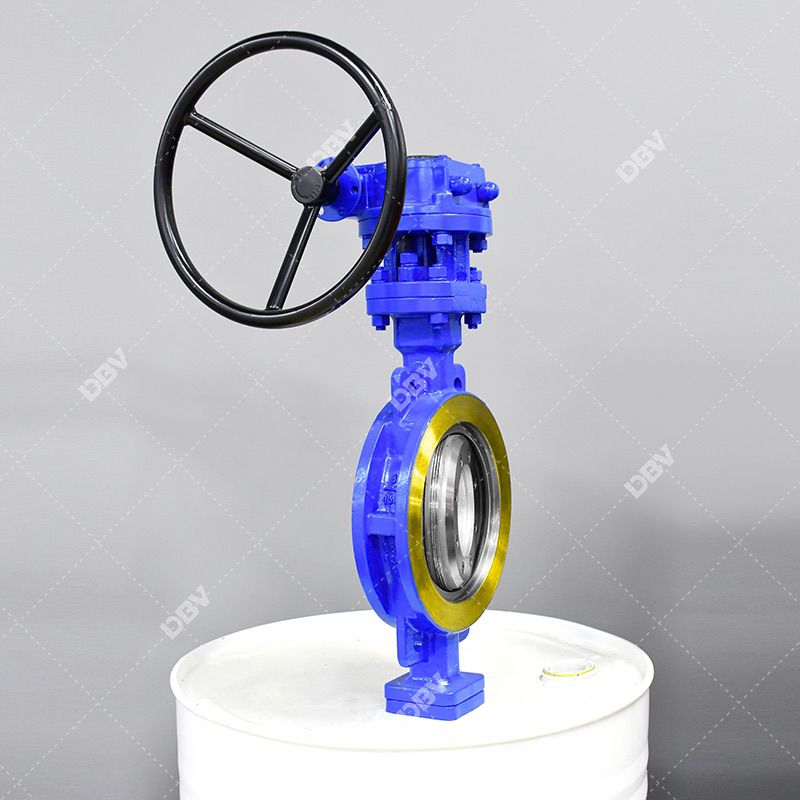

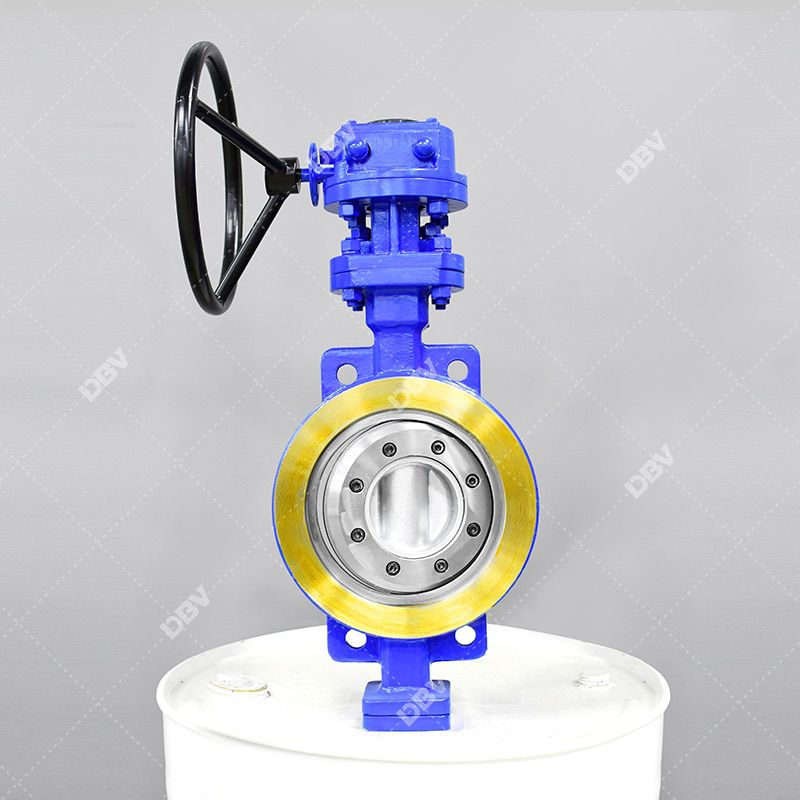

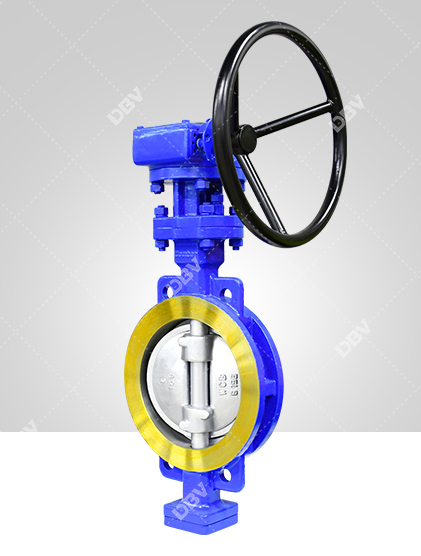

Worm Gear Wafer Metal to Metal Triple Offset Butterfly Valve
  • metal to metal wafer type butterfly valve
  • wafer type triple eccentric butterfly valve
  • wafer type manufacturer
  • wafer type triple eccentric butterfly valve
  • lug wafer type butterfly valve
向上
向下

Worm Gear Wafer Metal to Metal Triple Offset Butterfly Valve

  • Product description:

    DBV has two factories in China now, which is specialized in ball valve and butterfly valve.

Similar items

read more

  • Details
  • Description
  • Download

Wafer CF8M Butterfly Valve

  Product Description


wafer type metal to metal butterfly valve

Body: WCB; Disc: CF8, Stem: 13Cr. Seat: 304+Graphite

PN10

DN800

Triple Eccentricity

API 609

-29~+450

API 598/ISO 5208

Wafer

NACE 0175

Worm gear


       wafer butterfly valve

    PSWe also can do according to customer's requirements.

  Product Details

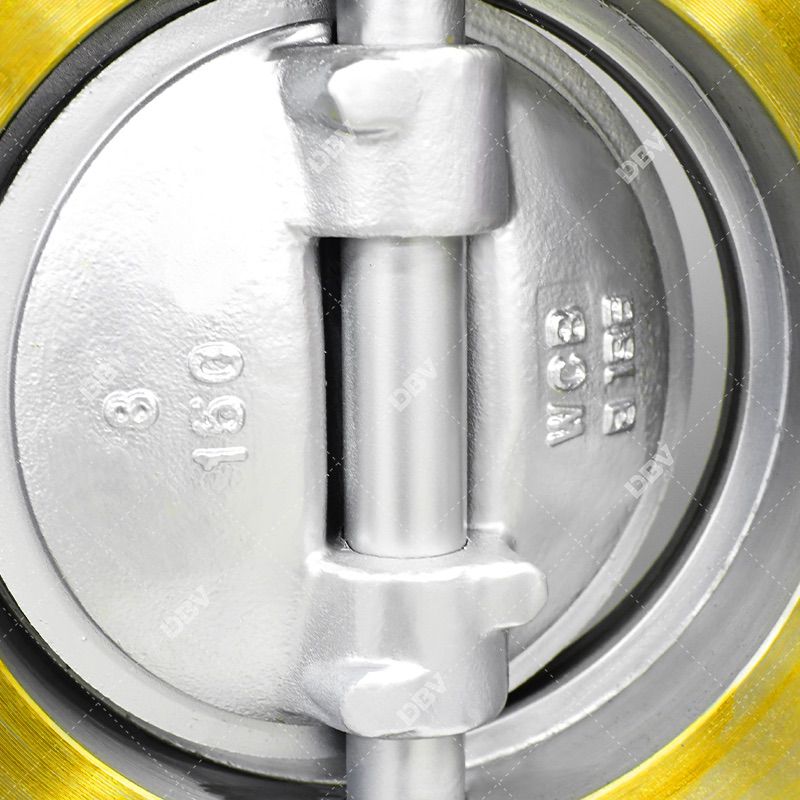

wafer type butterfly valve vendor

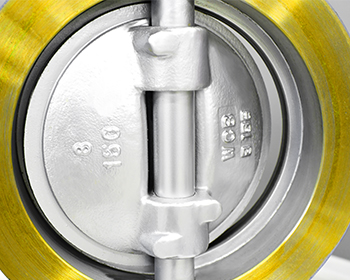

Unique Plum Pin Design


DBV butterfly valve adopts  the  plum pin design,  which

is  different  from  traditional  pin  design.  As we all know,

traditional  pin is straight to the stem,  but  the plum pin is

tilted to the stem. From the aspect of application, the plum

pin could afford higher pressure and larger diameter.






wafer type triple offset butterfly valve

Standard Bolts & Nuts


DBV ball valve adopts the standard bolts and nuts. It could extend the

valve longer service life.









  Why Choose DBV Valve?


    Triple Eccentricity Design Features

TripleEccentricity




    The stem is offset on both the X (1)and Y (2) axis of the valve's center line.

This produces a cam一like motion. The third offset (3) consists of an inclined

conical  profile machined into  the  valve  sealing  surface. This allows rotary

engagement  and  disengagement  of   the   seat   and   seal   ring   without

interference.  All  rubbing  between  seat  and seal ring is thereby eliminated.

Once the seat and seal ring are  fully  engaged  torque  is applied in order to

create a bi一directional, zero leakage,  metal-to一metal seal. For this reason,

triple offset valves are often defined as "torque" seated rather than”position”

seated as in the case of resilient or high performance products.

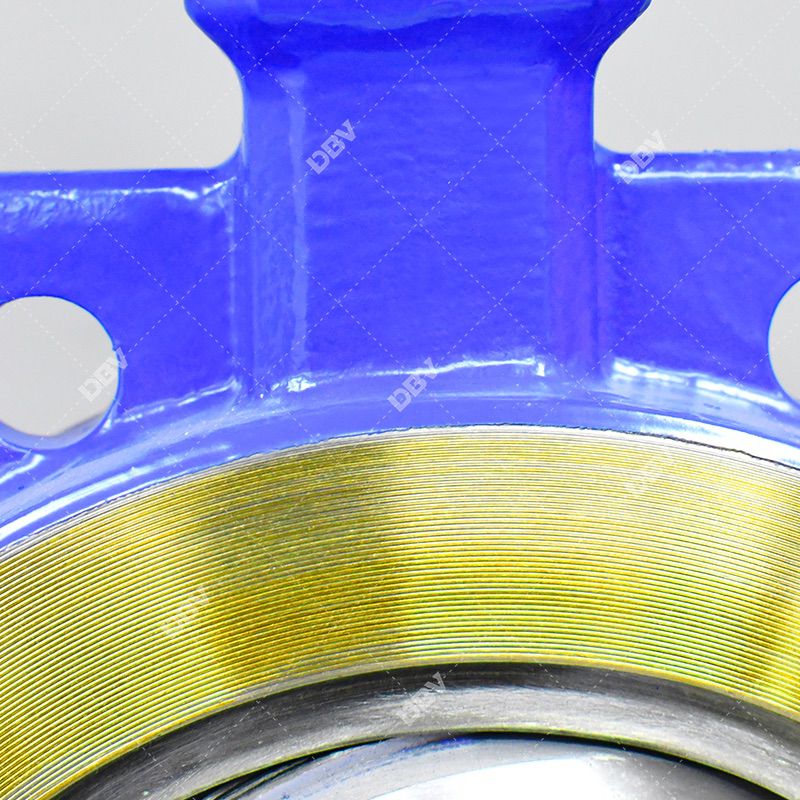

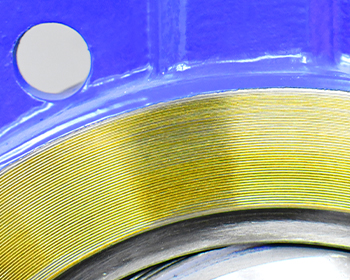

    Multi-layer disc sealing ring


Sealingring







    Multi-layer disc sealing ring adopts ss304 and graphite laminated, sealing by


the inside graphite, applied for low and middle pressure, as recycle water, swage


treatment, city building, etc.









    Product Comparison


    Pin Design

Pinconmparision















  Bottom Cover Design

BottomCovercomparision





  Bolt & Nut

BoltNutcomparision

    Painting

Paintingcomparision


    Factory Direct Sales

DirectSales


   Quality Assurance

 QualityAssurance


        Our products are with 2 years quality assurance and lifelong maintenance.

Warranty  time  starts from the dispatch of the goods. Quality assurance means

all the cost arising form the quality problems caused by the manufacturer within

two years will be afforded by us.



   International Logistics

Delivery

Delivery Time

   In general, the delivery time will be confirmed with the customer in the order,

1-2 days after getting the bank receipt or deposit , the goods will make arrangements.

Delivery Method

   Shipment: CIF, FOB,etc.

   Transportation: air, sea, train, logistics.


   After-sales Service

Aftersales



Email
  We have an email specialized for customer to ask the position of the shipment

and the express, also make the complain or suggestion.


Free Installation Guide

  After receiving the goods, you will get a installation guide After receiving the

goods, you will get a installation guide professional techs.




 F&Q

  Q1. Are you a factory or trading company?

  A: We are a factory specialized in manufacturing valves over 15 years. We both have factory in Wenzhou and Shanghai.

  Q2. Can I have a sample order for valve?

  A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable. The sample is free.

  Q3.Do you have any MOQ limit for valve order?

  A: Low MOQ, 1pc for sample checking is available

  Q4. How do you ship the goods?

  A: We usually ship by sea, by air, by courier, etc.

  Q5. How to check the process of the order?

  A: You can check your order on our website after we provide you account and password.

  Q6: Do you offer guarantee for the products?

  A: Yes, we offer 2 years warranty to our products and we could repair freely for lifelong time.

  Q7: Can you print our Logo on the valves?

  A:Yes, we can totally produce products according to your special request, even manufacture it base on your drawing.
  Q8: How can I check your factory situation while it's difficult for me to come to China?
  AWe have photos and videos on our website, youtube and facebook, It shows every step of the manufacturing.
